Contemporary Research 232-ATSC HDTV Tuner *Untested*
Contemporary Research 232-ATSC HDTV Tuner *Untested*
Contemporary Research 232-ATSC HDTV Tuner *Untested*
Contemporary Research 232-ATSC HDTV Tuner *Untested*
Contemporary Research 232-ATSC HDTV Tuner *Untested*
Contemporary Research 232-ATSC HDTV Tuner *Untested*
Contemporary Research 232-ATSC HDTV Tuner *Untested*
Contemporary Research 232-ATSC HDTV Tuner *Untested*
Contemporary Research 232-ATSC HDTV Tuner *Untested*
Contemporary Research 232-ATSC HDTV Tuner *Untested*
Contemporary Research 232-ATSC HDTV Tuner *Untested*
Contemporary Research 232-ATSC HDTV Tuner *Untested*

Contemporary Research 232-ATSC HDTV Tuner *Untested*

Price
$50.00

Item Details:

  • Brand: Contemporary Research
  • Model: 232-ATSC
  • Type: HDTV Tuner
  • Features:
    • SmartScan skips encrypted channels automatically (HD Firmware V 1.12.)
    • Tunes ATSC off-air, clear QAM cable, and analog channels
    • HDMI and Video as well as stereo and digital coax and TOSlink Optical Audio ports are always active
    • VGA or Component Switchable from front-panel or RS-232
    • Dolby 5.1 or PCM/Variable PCM Digital Audio formats for audio ports and HDMI
    • Front-panel and IR onscreen menus for tuner setup and scanning
    • Independent Cable and Off-Air RF inputs and channel lists, switchable via IR, front panel, and RS-232
    • Analog and digital closed captioning
    • Upscales SD and analog channels
    • Rack-mountable in 2RU, two across
    • Full ASCII 2-way RS-232 commands, AMX, Crestron, and RTI modules available, dicreate IR commands
    • RS-232 can be daisy-chained to control up to 9 tuners from a single RS-232 port
    • Works with free Tuner Helper control panel/setup software, operates over RS-232 or Ethernet with IP-232 Interface
    • Field-udatable control and HD processor firmware
  • Distribution: AV over RF

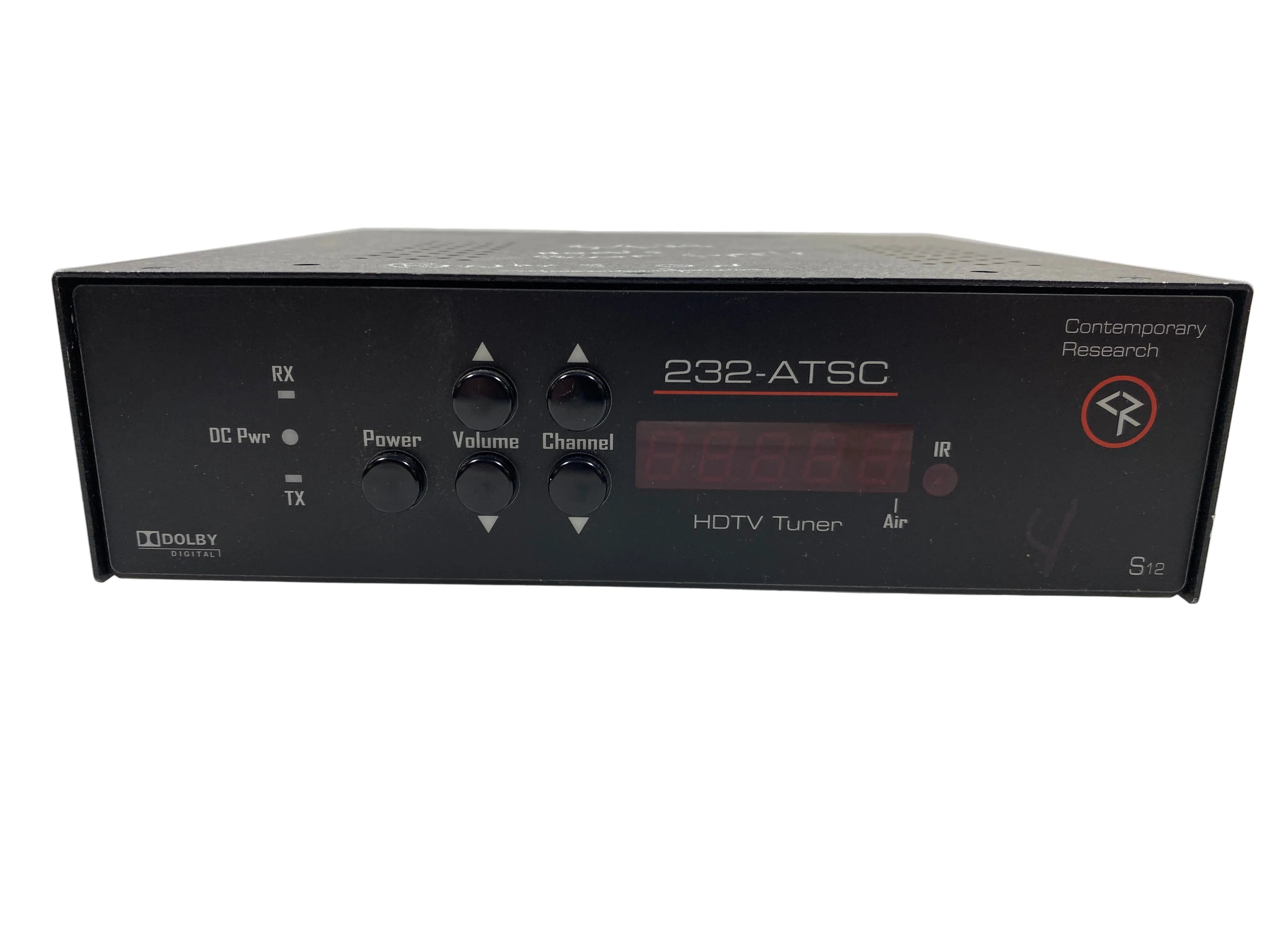

  • Front Panel:
    • Display: Red LED Channel Display, dot separated major and minor channel numbers, dot at end indicates off-Air tuning
    • IR: IR sensor
    • Control: Power, Volume Up/Down, Channel Up/Down
    • LEDs: DC Power (Green), RS-232 RX (Yellow), RS-232 TX (Red)

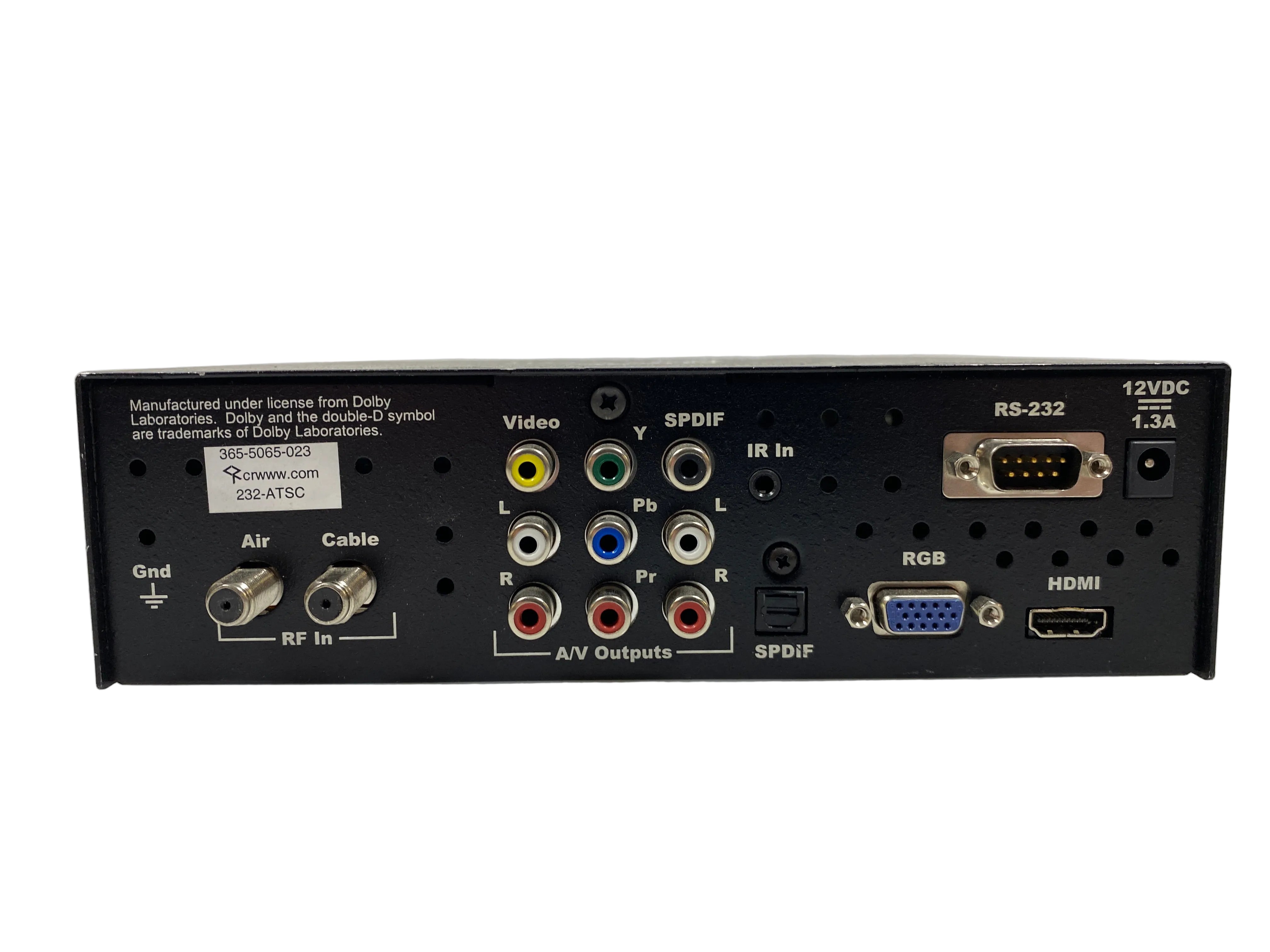

  • Back Panel:
    • RF In: 2 'F', Female, 75 ohm impedance, off-air and cable
      • User can switch between inputs
    • AV Output: Simultaneous HDMI, RGB/Component, and video out - switchable RGB/Component
      • Simultaneous HDMI (PCM), Digital Coax and Optical (AC-3 or PCM)
    • Video Out: RCA composite video output, 1V p-p at 75 ohm impedance
      • Simultaneous 480i
    • Component Out: 3 RCA Y, Pr, Pb outputs (1080i/720p/480p/480i)
    • Digital Audio S/PDIF: Coax and TOSlink Optical Output, Dolby 5.1/PCM
    • Analog Audio Out: Stereo RCA audio, Mono, Stereo, or SAP, Variable level
    • RGB Out: VGA RGBHV DB-15 female (1080i/720p/480p/480i)
    • HDMI: HDMI receptacle, Type A, HD video and digital audio (in PCM mode), version 1.2 (1080i/720p/480p), HDCP
    • RS-232 Control: DB-9 male, RS-232 data link to control system or PC, Link up to 9 tuners, 300-19,200 baud (9699 default)
    • IR In: 3.5mm stereo input for external IR sensor or wired IR (no carrier, discrete codes available)
    • Power In: 2.1mm coaxial jack (Inside center conductor positive)
      • 1.3 A Maximum, 11.5 to 15 VDC, 12 VDC typical
      • 15.6 W 53.2 BTU 60.2 BTU including power supply
  • Captioning:
    • All outputs, including composite video, display captioning from digital and analog channels
    • The composite video signal also includes Line 21 captioning when turned to digital channels
  • Frequency Range: NTSC, ATSC (8-VSB) and Clear Quam (Cable) television 55.25 to 801.25 MHz
  • DTV Resolution: ATSC 1080i/720p/480p/480i
  • Tuning: Off-air 14-69 (NTSC and 8-VSB) and CATV 1-135 (Analog, 64QAM, 256QAM, 8-VSB)
  • Aspect Ratio: 4:3, 16:9 (Digital), 4:3, 16:9, Zoom (Analog Channels)
  • Captioning: DTV and analog, set by program or customized for size, font and display attributes
  • Lock: Parental option for channels and/or rating

Item Condition:

  • Item is used
  • Item may have minor scratching and scuffing from normal use
  • This item powers on but has not been tested further due to a lack of equipment
  • Item pictured may not be the exact item received
  • Item does not include any additional accessories
  • Item requires power supply (not included)
SKU: 182527
Only 1 left in stock!
