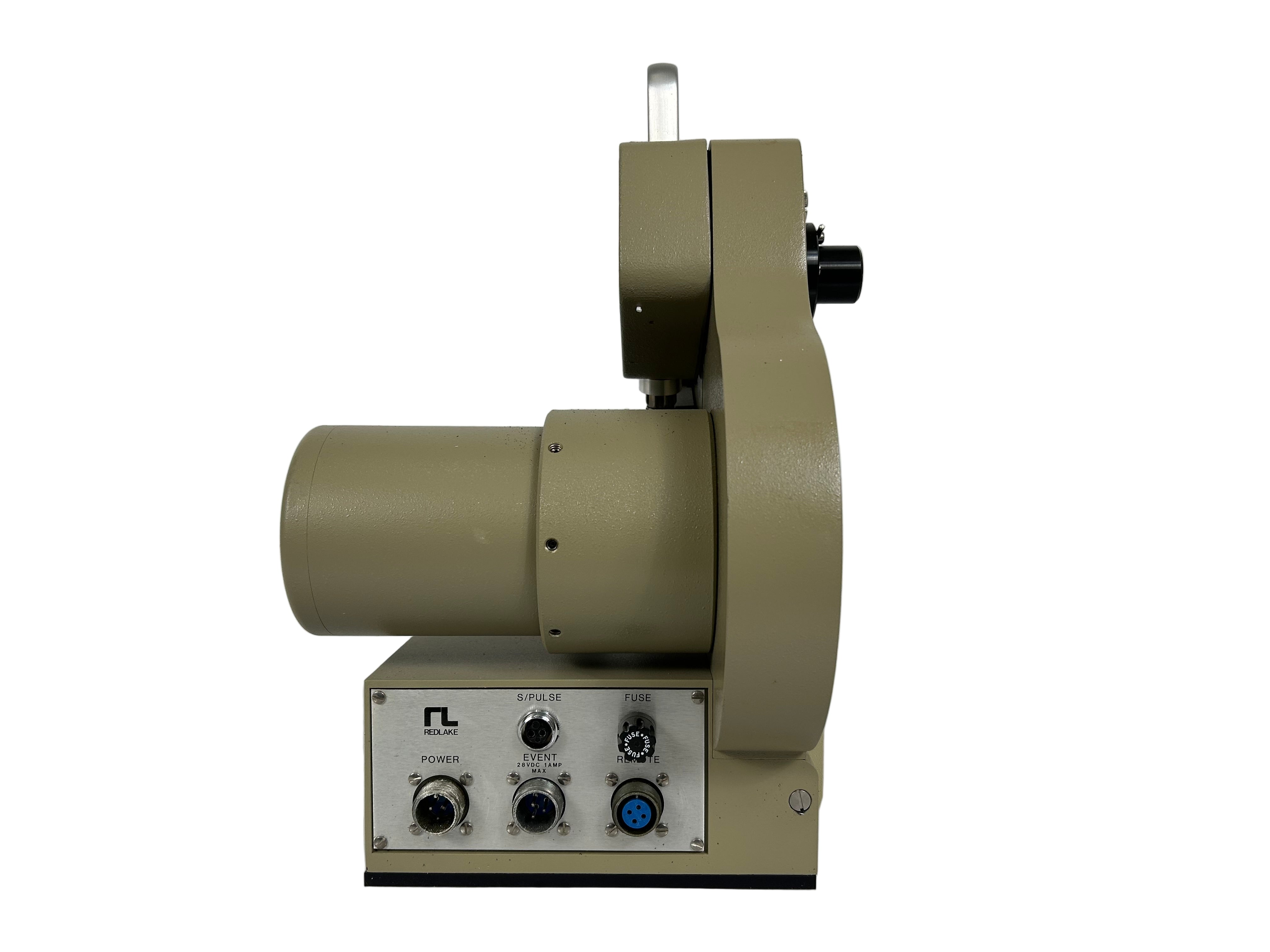

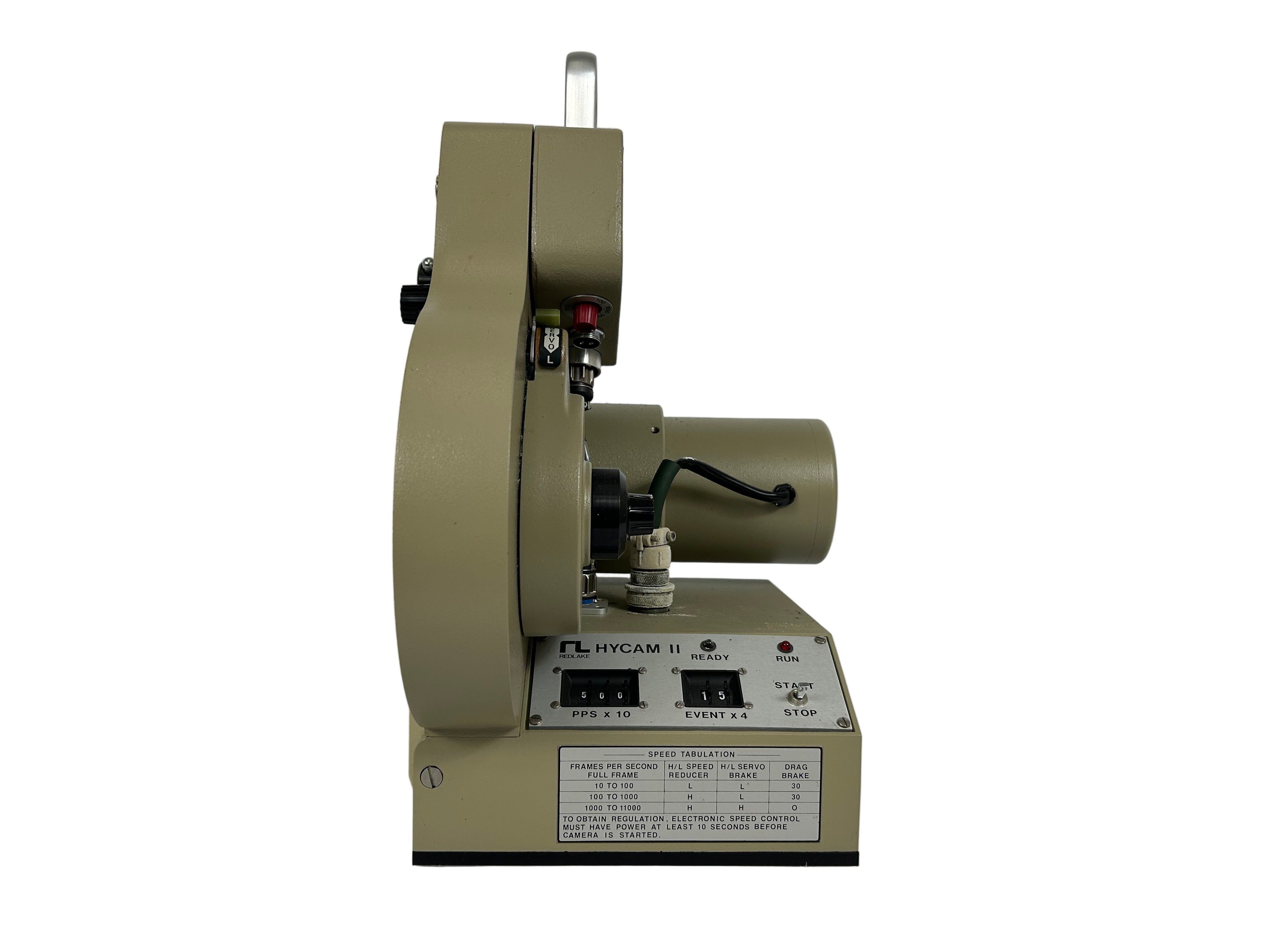

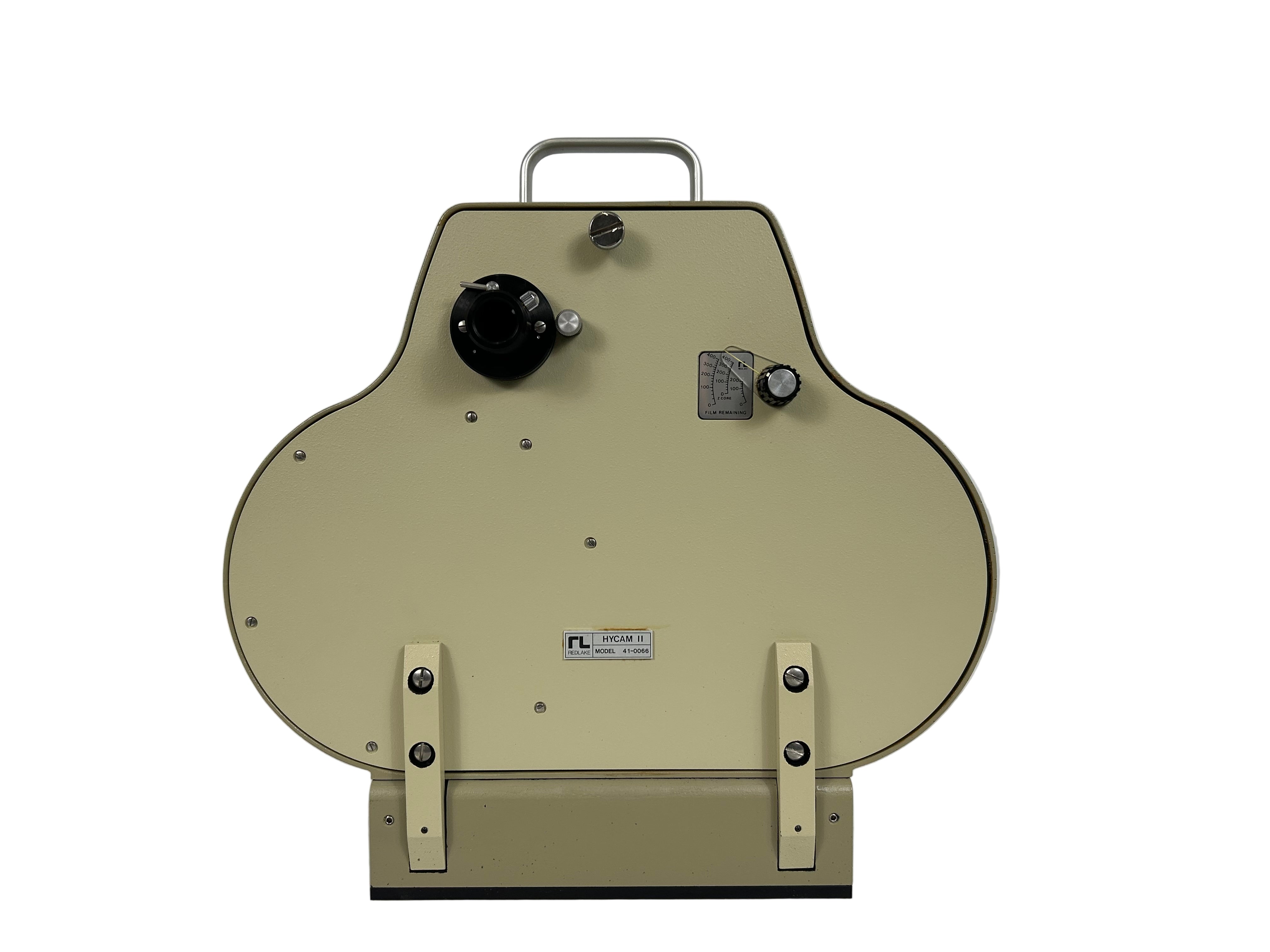

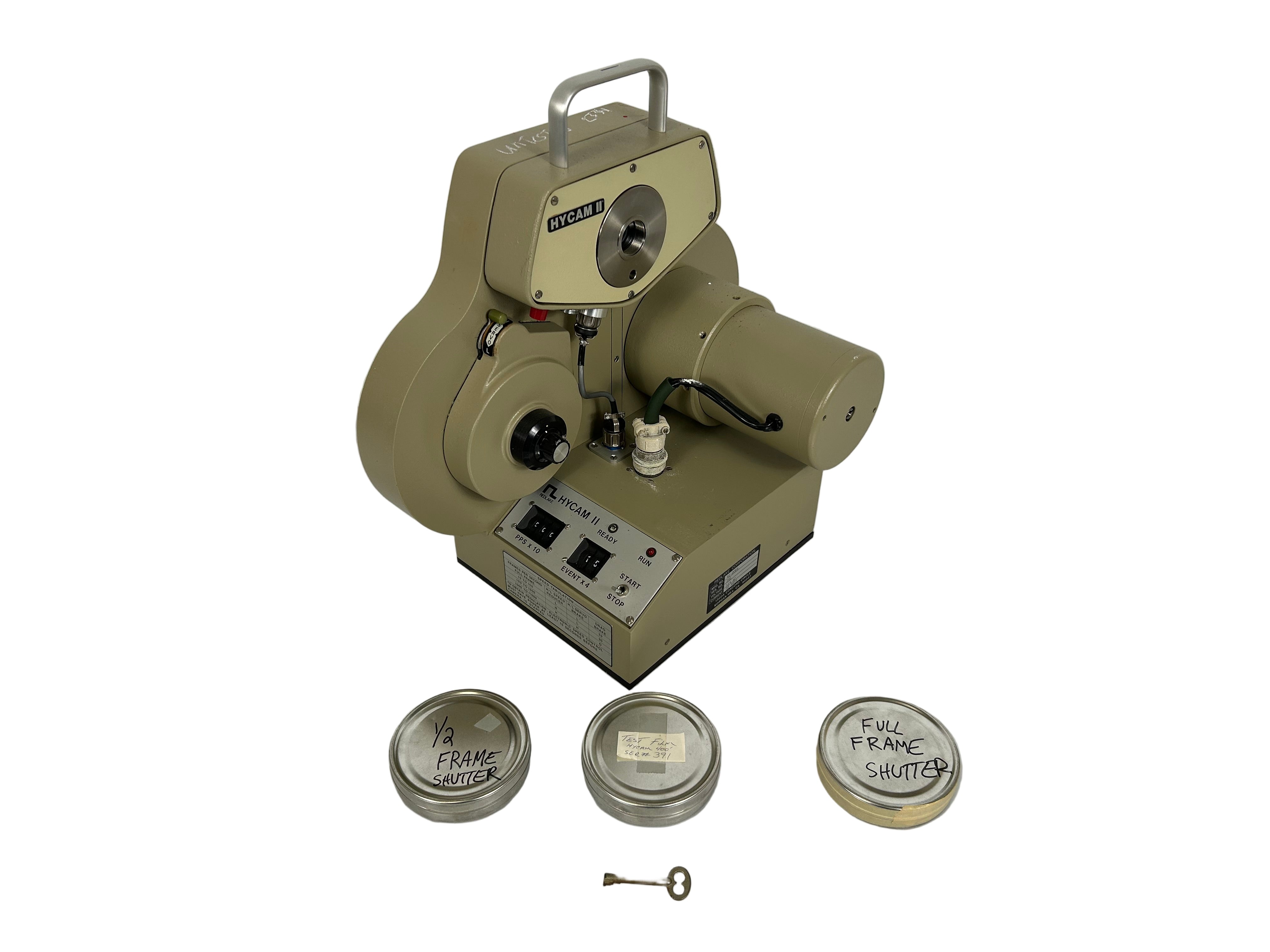

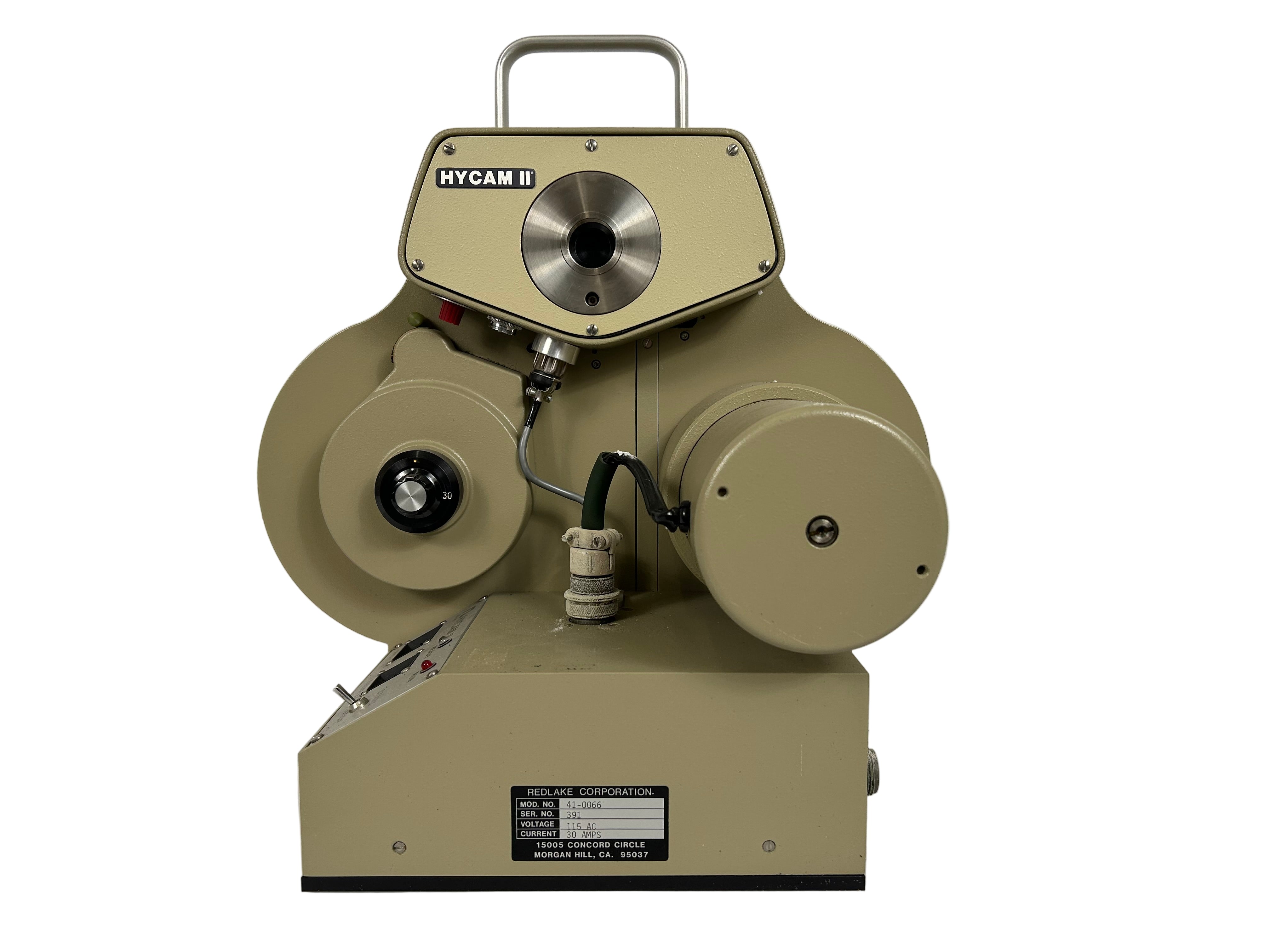

Hycam II High Speed Movie Camera *Untested*

Item Detail:

• Brand: Redlake
• Model: Hycam ii 41-0066

Specs:

• FILM CAPACITY: 16mm x 400 feet acetate
  base film or 16mm x 450 feet 4 mil. polyester
  base film .

• SPEED RANGE: 80 to 11 ,000 frames per
  second (full frame). 200 to 22,000 frames
  per second (half frame). 400 to 44,000
  frames per second (quarter frame).

• SPEED CONTROL: Electronic Servo control ,
  provides regulation over entire speed range
  to ± 1% or 1 full frame whichever is greater.

• SPEED SELECTOR: Thumbwheel speed
  selector switch in 10 FR.lSEC. increments.
  Self-locking at each position .

• ACCELERATION (TYPICAL): 1.50 seconds to
  5,000 FR.lSEC., utilizes 75' of film to reach
  speed (nominal) .

• EVENT SYNCHRONIZER: Thumbwheel
  selector, 4 to 396 feet in 4 foot increments.
  Accuracy ± 5% or better.

• POWER REQUIREMENTS: MODELS:
  41-0064, 41-0065 & 41-0066. 115V ± 10
  VAC, 50/60 Hz. with 30A circuit.

• MOUNTING PROVISIONS: Bottom surface
  has standard 3/ 8" - 16 tapped holes in 3
  locations plus 4 No. 10-32 tapped holes for
  mounting dovetail base plate.

• DOOR ASSEMBLY: Hinge type, swings down
  . 90° or may be removed for easy access to
  film chamber.

• FILM FOOTAGE INDICATOR: Door mounted
  lever, spring loaded away from film spool.
  When depressed manually the lever
  indicates film remaining .

• END OF FILM SENSOR: An infrared (IR)
  sensor automatically stops the camera when
  the end of film clears the sensor aperture.

• SPOOL ADAPTERS: All Series 41 cameras
  accept accessory adapters for use with 100
  foot & 200 foot film spools which reduce end
  of film chipping & shatter at high speeds.

• CAMERA WEIGHT: 32 pounds, all models, less
  lens and film.

Condition:

• Item may contain minor scratching and scuffing from normal use

• Unable to test due lack of equipment
